2 Welcome to the Design of Experiments Workshop!

2.1 Overview

Review of designed experiments

  • Why do we need designed experiments?
  • Precision, power, and inference
  • Optimal designs

TAPS designed experiments

  • TAPS designs
  • Integrating new questions into TAPS experiments

2.1.1 Some review of math and notation

On Notation:

  • scalars: \(y\), \(\sigma\), \(\beta_0\)
  • vectors: \(\mathbf{y} \equiv [y_1, y_2, ..., y_n]'\), \(\boldsymbol{\beta} \equiv [\beta_1, \beta_2, ..., \beta_p]'\), \(\boldsymbol{u}\)
  • matrices: \(\mathbf{X}\), \(\Sigma\)
  • probability distribution: \(y \sim N(0, \sigma^2)\), \(\mathbf{y} \sim N(\boldsymbol{0}, \sigma^2\mathbf{I})\).

On Stat models

Typically we write \(\mathbf{y} = \mathbf{X}\boldsymbol{\beta} + \boldsymbol\varepsilon\).

  • Here, \(\mathbf{y}\) is the vector of the response data, \(\mathbf{X}\) is the design matrix with the predictors, and \(\boldsymbol{\beta}\) is a vector with the effects of those predictors.
  • The residuals are typically \(\varepsilon_i \sim N(0, \sigma^2)\).
  • You will see \(\mathbf{X}^\top \mathbf{X}\) a lot because it is related to the estimation of \(\sigma^2\) and thus, affects all inference. What does it do? The result is a square matrix where the number of rows and columns equals the number of predictors (i.e., treatments).
    • The diagonal indicates the sum of squares of that predictor.
    • The off-diagonal are unscaled versions of correlations between predictors.

2.2 Why do we need designed experiments?

  • Golden rules: replication, randomization, local control

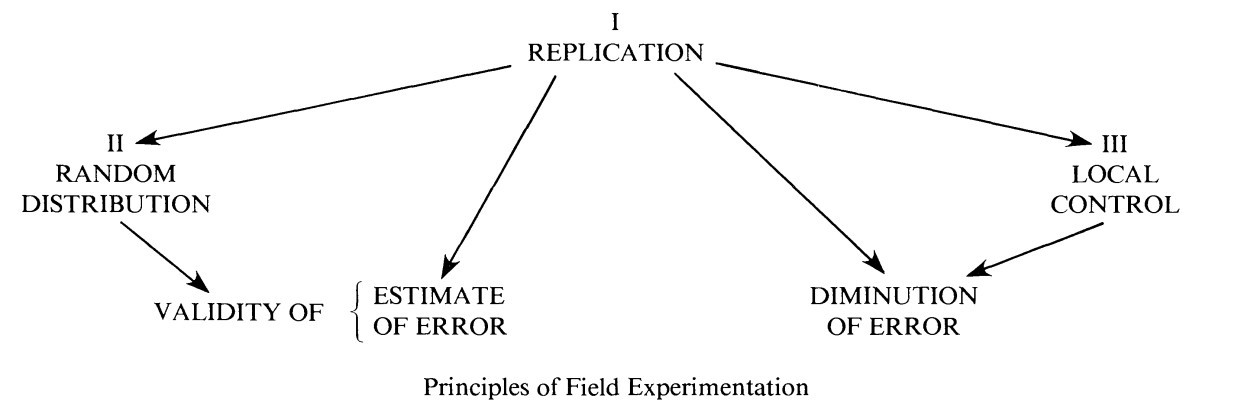

Fisher's diagram 'The Principles of Field Experimentation'. Figure 1 in [Preece (1990)](https://doi.org/10.2307/2532438).

Figure 2.1: Fisher’s diagram ‘The Principles of Field Experimentation’. Figure 1 in Preece (1990).

  • And why do we need statistics to analyze our experiment results?
  • History of designed experiments. [link]
  • History of statistics. [link]

2.3 Precision, power, and inference

The most common model we use can be generally described as

\[y_{i} \sim N(\mu_i, \sigma^2),\] where \(y_{i}\) is the \(i\)th observation with expected value \(\mu_i\) and variance \(\sigma^2\). Generally speaking, we can say \(\boldsymbol\mu = \mathbf{X} \boldsymbol{\beta}\), where \(\mathbf{X}\) is the design matrix (i.e., contains info on all treatments, etc) and \(\boldsymbol{\beta}\) is a vector containing all parameters.

The assumptions we make are

  • normality,
  • independence,
  • constant variance.

A few properties arise as a consequence:

  • \(\hat{\boldsymbol{\beta}}\) is an unbiased estimator of \(\boldsymbol{\beta}\).
  • \(\hat{\boldsymbol{\beta}}\) is also the unbiased estimator with the smallest variance.
  • Precision of the estimates: \(Var(\hat{\boldsymbol{\beta}}) = \frac{\sigma^2}{\mathbf{X}^\top \mathbf{X}}\).
  • Standard error of the estimates: \(se(\hat{\boldsymbol{\beta}}) = \sqrt{\frac{\sigma^2}{\mathbf{X}^\top \mathbf{X}}}\).
  • Also, looking directly at treatment means \(\mu_j\): \(se(\hat{\mu_j}) =\sqrt\frac{\sigma^2}{r}\), where \(r\) is the number of repetitions.
  • Variance of \(\hat{y}\): \(Var(\hat{y}) = \sigma^2 \mathbf{X} (\mathbf{X}^\top \mathbf{X})^{-1} \mathbf{X}^\top\).
  • See ‘Review’ above to understand what \(\mathbf{X}^\top \mathbf{X}\) does.

2.3.0.1 Inference

  • What in the model were we interested about?
  • A confidence interval of \(\hat{\boldsymbol{\beta}}\): \(CI_{95\%\ \hat{\boldsymbol{\beta}}} = \hat{\boldsymbol{\beta}} \pm t_{1-\alpha/2, df} \cdot se(\hat{\boldsymbol{\beta}})\).
  • What is the most accurate confidence interval?
  • What is the best confidence interval?

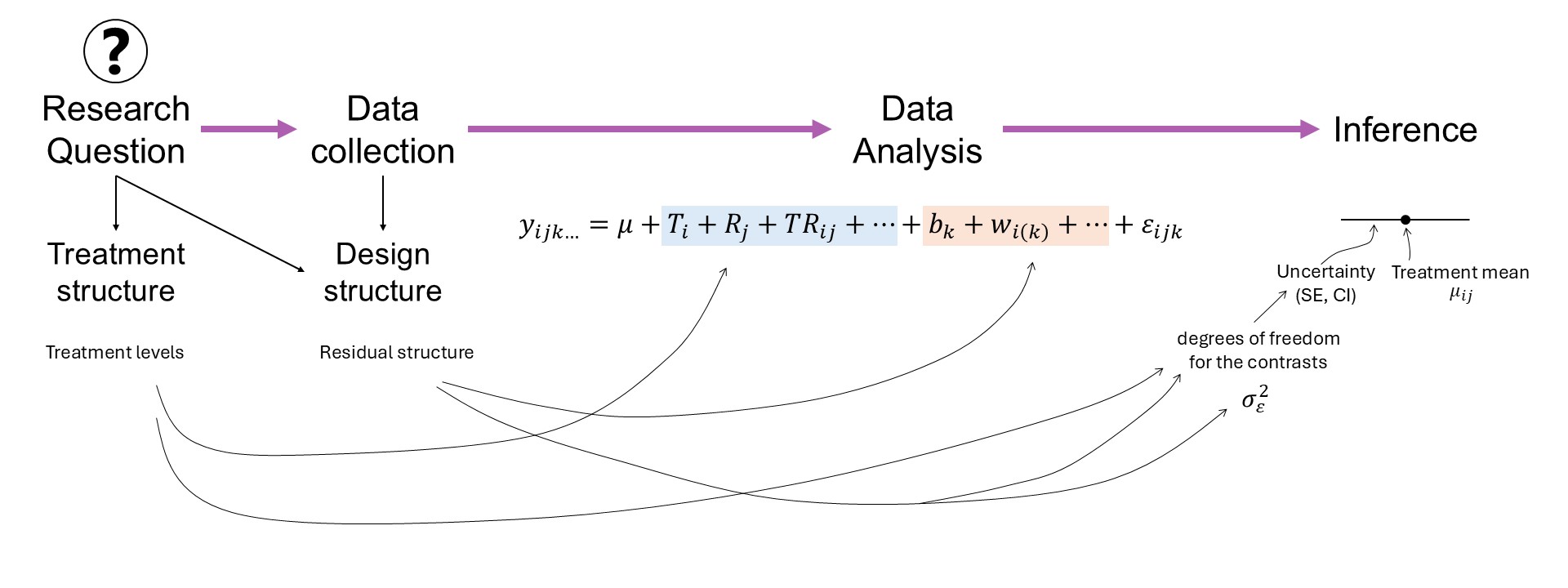

Mindmap: experiment design and data analysis in the context of a research question.

Figure 2.2: Mindmap: experiment design and data analysis in the context of a research question.

2.3.0.2 Precision

We wish to maximize the information about the estimates: this means having a narrow range of values where we have high confidence contain the true value.

Recall:

\[CI_{95\%\ \hat{\beta_j}} = \hat{\beta_j} \pm t_{1-\alpha/2, df} \cdot se(\hat{\beta_j}).\]

What happens when we increase the number of observations:

  • \(t_{1-\alpha/2,\ df_1} \rightarrow t_{1-\alpha/2,\ df_2}\)
  • \(se(\hat{\beta_j}) = \sqrt{\frac{\sigma^2}{(\mathbf{X}^\top \mathbf{X})^{-1}_{jj}}} = \sqrt{\frac{\sigma^2}{n\cdot s^2_x}}\)
  • Discuss increasing \(r\) versus increasing \(J\) (i.e., total number of treatments).

2.3.0.3 Power

  • Statistical power is directly connected to hypothesis tests.
  • Hypothesis tests are directly connected to the standard error of the estimates.

Strategies to increase power

Elements of ANOVA

ANOVA table for the cookie split-plot experiment.
Source df SS MS EMS
Block \(b-1\) \[\sigma^2_{\varepsilon}+g\sigma^2_w+tg\sigma^2_d\]
Fungicide \(t-1\) \(SS_{F}\) \(\frac{SS_{F}}{b-1}\) \[\sigma^2_{\varepsilon}+g\sigma^2_w+\phi^2(\alpha)\]
Error(whole plot) \((b-1)(t-1)\) \[\sigma^2_{\varepsilon}+g\sigma^2_w\]
Genotype \(g-1\) \(SS_{G}\) \(\frac{SS_{G}}{g-1}\) \[\sigma^2_{\varepsilon}+\phi^2(\gamma)\]
\(T \times G\) \((t-1)(g-1)\) \(SS_{F \times G}\) \(\frac{SS_{F \times G}}{(t-1)(g-1)}\) \[\sigma^2_{\varepsilon}+\phi^2(\alpha \gamma)\]
Error(split plot) \(t(b-1)(g-1)\) \(SSE\) \(\frac{SSE}{t(b-1)(g-1)}\) \[\sigma^2_{\varepsilon}\]
Table 2.1: Baseline: Low #reps (3), Low #trts (3)
Df Sum Sq Mean Sq F value Pr(>F)
treatment 2 17.28135 8.640673 1.872832 0.2333563
Residuals 6 27.68217 4.613695 NA NA
Table 2.2: Baseline: More #reps (6), Low #trts (3)
Df Sum Sq Mean Sq F value Pr(>F)
treatment 2 87.55746 43.778731 8.26395 0.0028439
Residuals 18 95.35599 5.297555 NA NA
Table 2.3: Baseline: Low #reps (3), More #trts (6)
Df Sum Sq Mean Sq F value Pr(>F)
treatment 6 72.17677 12.02946 2.955068 0.0444459
Residuals 14 56.99106 4.07079 NA NA

2.3.1 Blocks

Blocks (or local control) are included to increase precision –> increase power.

  • How are blocks applied nowadays?
  • What does ‘convenience blocking’ generate? See Stroup (2002).

Incomplete Block Designs

  • More likely to recover spatial variability because they’re smaller.
  • ibd R package [link]

2.4 Optimal designs

Considering the items above, we can confidently say that our design affects \(\mathbf{X}\) and thus, precision, power, and inference.

There is a big body of literature studying the different designs that optimize different outcomes (e.g., precision, power, inference, etc.).

Optimality criteria summarize how good a design is in a single number. Optimal designs just optimize those criteria.

2.4.1 Some optimality criteria with emphasis on estimation

D-optimality

  • Perhaps the most common in field experiments.
  • Emphasis on the quality of the parameter estimates.
  • Minimize \(({\mathbf{X}^\top \mathbf{X}})^{-1}\) (i.e., maximize the determinant of the information matrix \({\mathbf{X}^\top \mathbf{X}}\)).
  • Maximizes the differential Shannon information content of the parameter estimates.

C-optimality

  • Minimizes the variance of a predetermined linear combination of parameters.

2.4.2 Other interesting optimality criteria with emphasis on prediction

G-optimality - Minimizes the maximum variance of the predicted values across the design region. I-optimality - Minimizes the average prediction variance over the design region.

2.5 Response surface designs

  • Continuous predictors
  • What about replications??
  • How does a design look like?

2.6 TAPS designed experiments

Designed experiments in TAPS are typically arranged in a randomized complete block design (RCBD).

Schematic representation of a randomized complete block design.

Figure 2.3: Schematic representation of a randomized complete block design.

Some TAPS designed experiments are arranged in a split-plot design.

Schematic representation of a split-plot design randomized complete block arrangement.

Figure 2.4: Schematic representation of a split-plot design randomized complete block arrangement.

2.6.1 In rounds:

  • What is one benefit we get from TAPS designs?
  • What are the treaments in TAPS experiments?
